Layout Studio®

Layout Studio® with Performance Rail

Layout Studio® Plan View

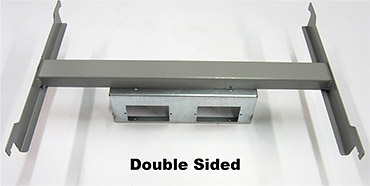

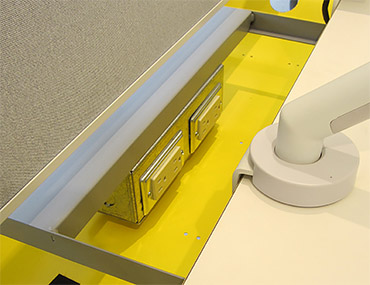

Back to Back Station
4 duplex receptacles standard (two per station) at access
Additional duplexes may be added away from access, see blue arrow.

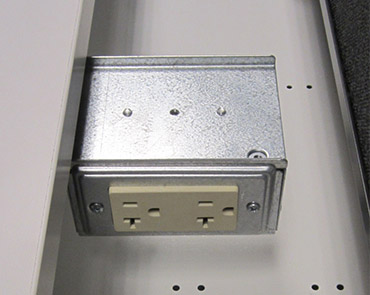

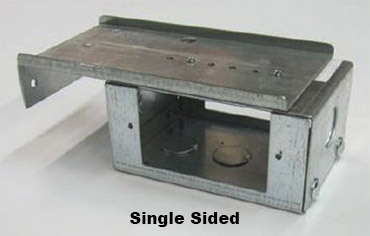

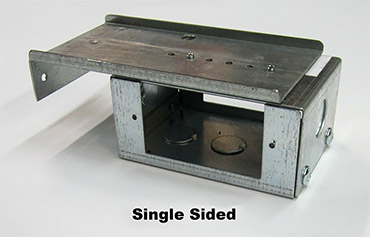

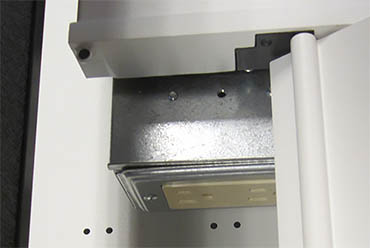

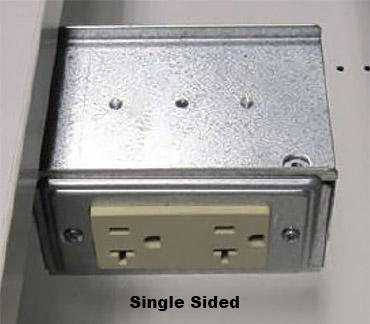

Single Sided Station With or Without Performance Rail
1-2 duplex receptacles standard at access
Additional duplexes may be added away from access, see blue arrow.
Duplex Receptacle = 2 places to plug in

Layout Studio® Plan View with Performance Rail

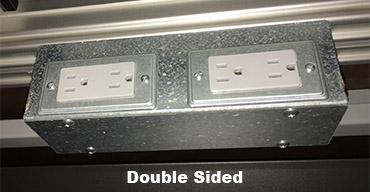

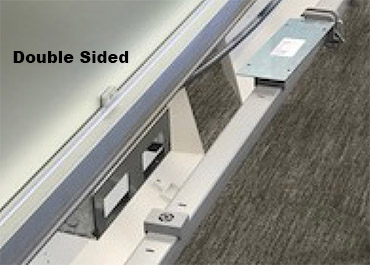

Performance Rail Back to Back Station
4 duplex receptacles standard (two per station) at access
Additional duplexes may be added away from access, see blue arrow.
Duplex Receptacle = 2 places to plug in
