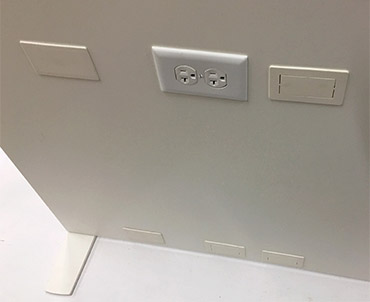

Canvas Channel Metal Skins®
Canvas Channel Soft Tiles®
Canvas Channel® Plan View
Base Height
1-8 duplex receptacles per panel any quantity combination
(4 per station) (blanks may be used)
1-8 duplex receptacles per panel any quantity combination
(4 per station) (blanks may be used)
Higher Height Below Surface
1-8 duplex receptacles per panel any quantity combination
(4 per station) (blanks may be used)
(same as above)
1-8 duplex receptacles per panel any quantity combination
(4 per station) (blanks may be used)
(same as above)

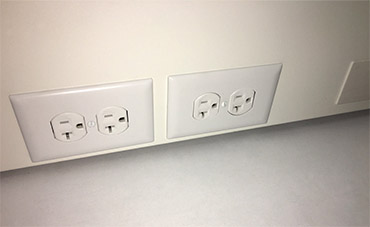

Duplex Receptacle = 2 places to plug in

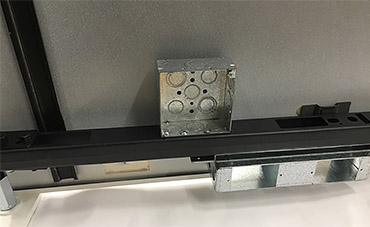

Important Information for Chicago Installations

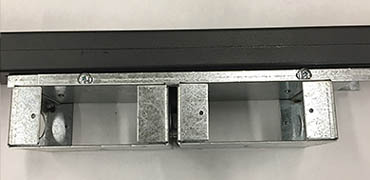

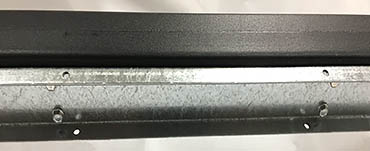

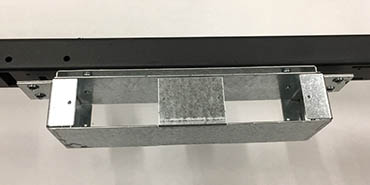

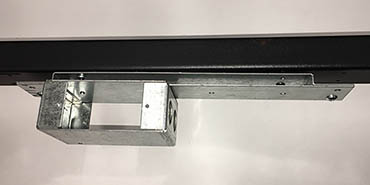

When Mounting First Half of Bracket to the Frame

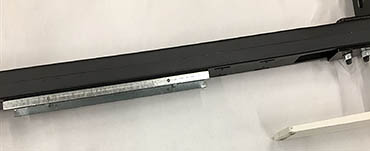

If these are on the lower bar, it is important to mount these before the frames are stood.
If these are on the lower bar, it is important to mount these before the frames are stood.

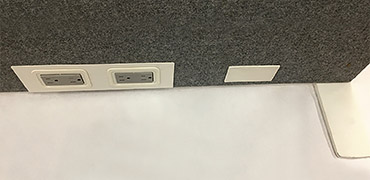

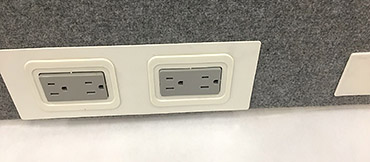

Soft tiles must be the “meets Chicago electrical code requirements” with trim shown here.
